Adeept 2 Pcs 996R Servo Motors Metal Gear Torque Digital Servo Motor High Speed for Smart Car JR Boat Robot RC Helicopter Arduino Raspberry Pi Robotic DIY Project
4.1 (147 items)
Limited Time Sale$7.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219482714 | Release Date | 2026/05/03 | List Price | $5.20 | Model Number | 219482714 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Universal "S" type connector for most receivers, compatible with JR, Hitec, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum. Brown is the ground wire, red is the power positive wire, and orange is the signal wire Specifications： Model: 996R Weight: 55g Size: 40.7×19.7×42.9mm Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v) Working speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v) Angular deviation: The return center error is 0 degree, 45 ° on the left and right, and the error is ≤ 3 ° Response pulse width time: ≤5usec Working voltage: 4.8~7.2v Gear Type: Grade 5 Metal Gear Set Temperature range: 0-55℃ Interface specification: JR/FP common Dead band width: 1us Servo line length: 30cm What's PWM range for these motors? 0.5ms------0 degrees; 2.5% (0.5ms high level + 19.5 low level) 1.0ms------45 degrees; 5.0% (1.0ms high level + 19.0 low level) 1.5ms------90 degrees; 7.5% (1.5ms high level + 18.5 low level) 2.0ms------135 degrees; 10% (2.0ms high level + 18.0 low level) 2.5ms------180 degrees; 12.5% (2.5ms high level + 17.5 low level) 0.5ms------90 degrees; 1.0ms------45 degrees; 1.5ms------0 degrees; 2.0ms------45 degrees; 2.5ms------90 degrees What power supply should I use? Working voltage: 3V-7.2V Recommended voltage: 5V, current usage: 3A Package List: 2 * 996R Micro Servo motor
- 996R servo motor is an upgraded version of SG90 and Compatible with 90S micro servo motor. (speed, tension and accuracy enhanced)
- Wide Applicability: Universal "S" connector, Fits most receivers.The 996R compliant with Hitec, Sanwa, GWS£¬Cirrus, Blue Bird, Blue Arrow standard receiver connector etc.Micro Servo Motor, suitable for 1:10 RC Car Robot Helicopter Servo RC Plane, Compatible with Arduino and Raspberry Pi DIY, suitable for most DIY projects

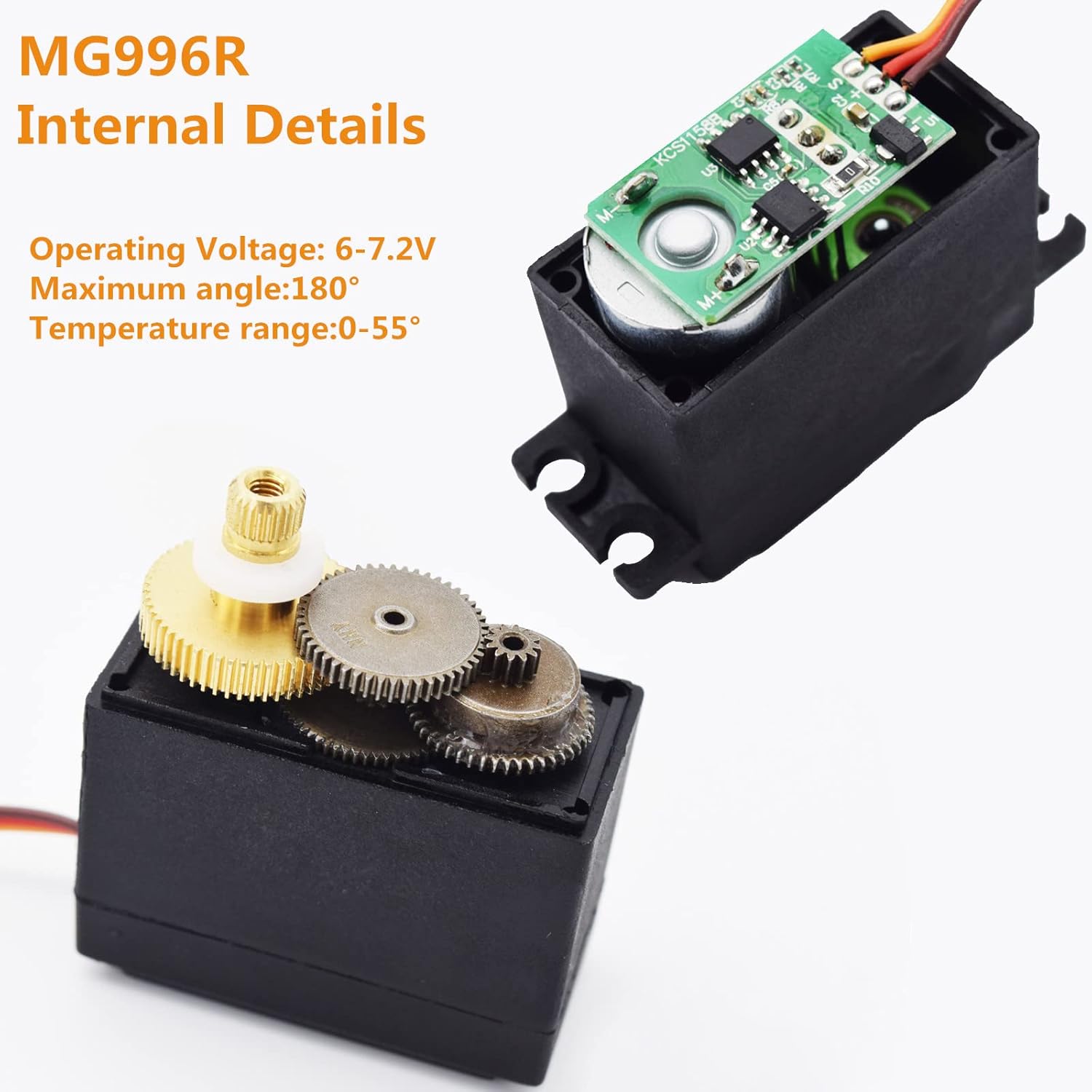

- High Quality: High-precision gear hobbing, hollow cup motor, double ball bearing, full metal gear. Durable, long working life.
- Torque 6V 12kg/cm, 7.2V 13kg/cm. 4.8V no-load positioning speed 0.17s/60 degrees (recommended voltage: 5V, current usage: 3A)
- If you received defective or non-working 996R servo motors. Please feel free to contact us, we will reply you within 24 hours
| Model | 2xMG996R |
|---|---|
| Voltage | 6 Volts |
| Brand Name | Adeept |
| Model Name | 996R Servo Motors |
| Item Weight | 55 Grams |
| Part Number | 2xMG996R |
| Manufacturer | Adeept |
| Material Type | Plastic, Metal |
| Warranty Description | Manufacturer Warranty for 90 days from date of purchase |
